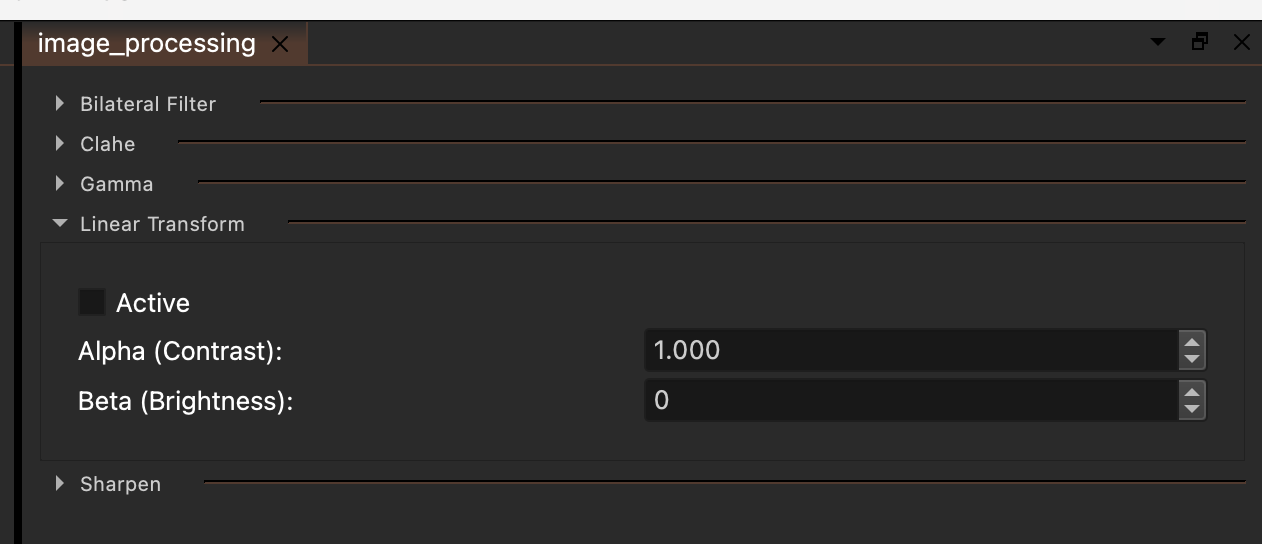

Collapsible Widget

We have a Collapsible Widget called a “Section” available. This kind of widget can expand to display the contents of the widget. This is useful for making an interface appear less cluttered.

General process for to add collapsible Widget:

QT Designer:

  1. Ensure the parent widget is in a vertical layout

  2. Create QWidget inside and promote it to a “Section”

  3. Create another QWidget within that QWidget. The inner QWidget will hold all the contents of the section.

  4. Populate this inner QWidget with widgets as normal.

Code part:

  1. Call autoSetContentLayout() on the Section QWidget after setupUi.

  2. Optionally, calling setTitle("title") will give it a title.
